| Home丂亜丂冇170 Round Single Headlight Conversion Kit for New Z400 & Z250 (19-) / ZX-4R & ZX-4RR (23-) |
|
170 Round Single Headlight
Conversion Kit
for
New Z400仌Z250乮19-丂乯/
ZX-4R仌ZX-4RR乮23-丂乯
International Shopping Coming Soon via WorldShopping! Shop from anywhere 仺 Worldwide shipping ready in just a few days. |

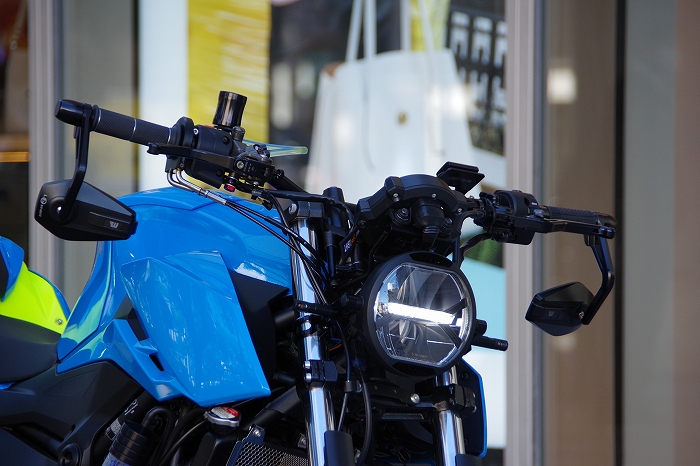

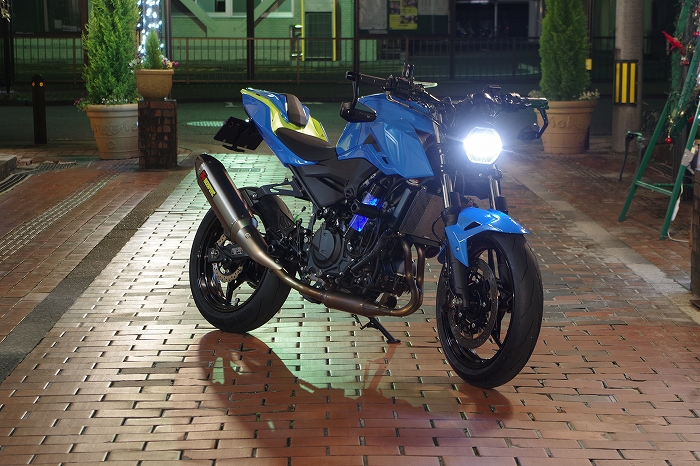

| By converting Kawasaki's new Z400/Z250 (2019 and later models) to a single round light, Give it a tough runner-like taste. Next-generation LED headlight kit that also meets Japanese vehicle inspections. Other than processing the wiring, it can be attached easily. A dedicated CNC machined meter stay is also included. |

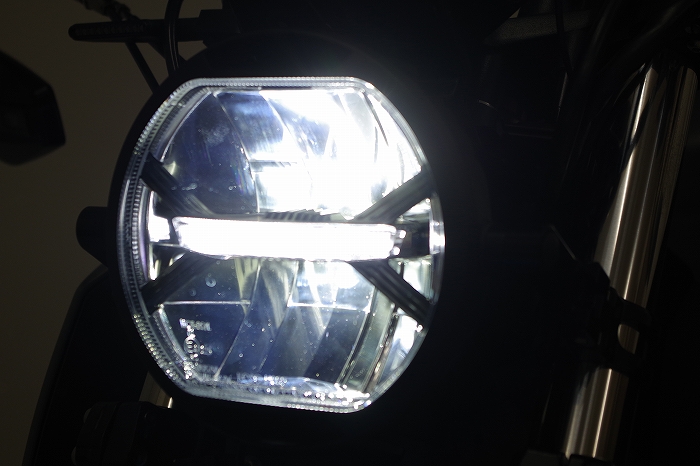

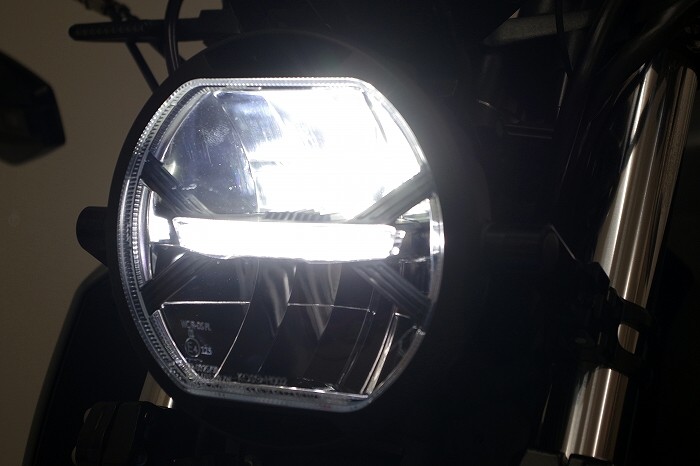

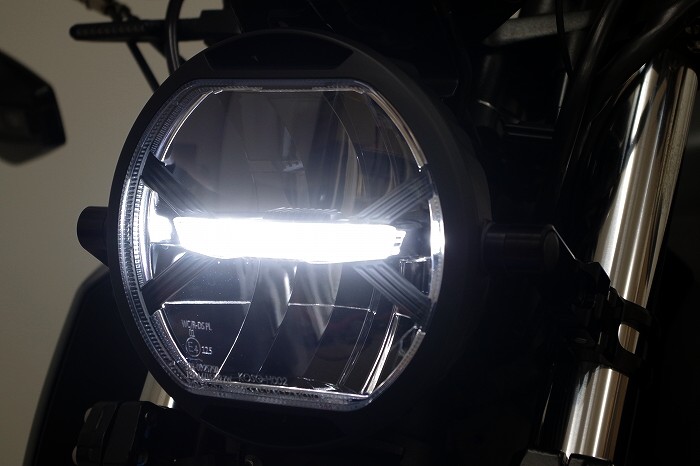

| The image above is This is what it looks like when the low beam is on. Note: When we say "low beam", Many people intuitively imagine that the bottom side lights up, but The 乬upper side乭 will light up, so Please be careful when wiring and installing. |

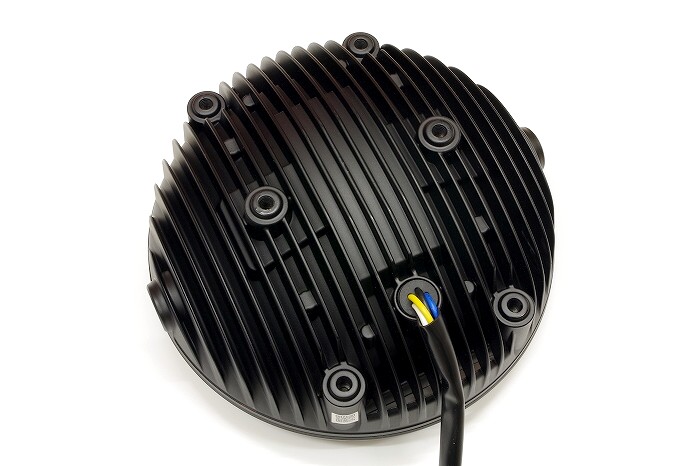

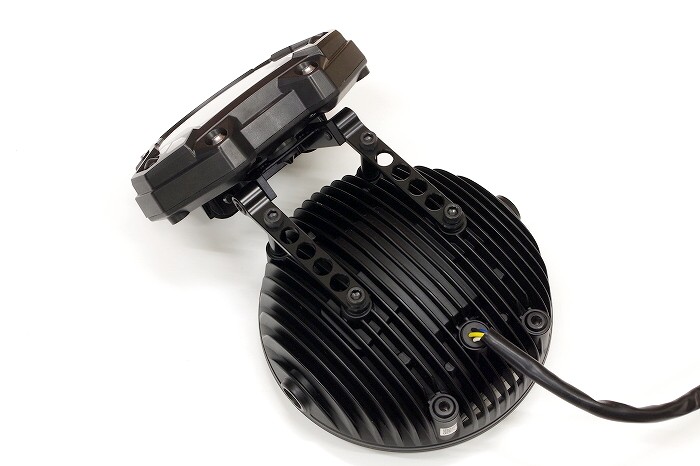

| The headlights are different from traditional headlights, which are made from pressed steel plates. Made of high quality die-cast aluminum. There is a heat sink on the back side for heat dissipation, which has high cooling efficiency. |
| Weight is approximately 958 grams. |

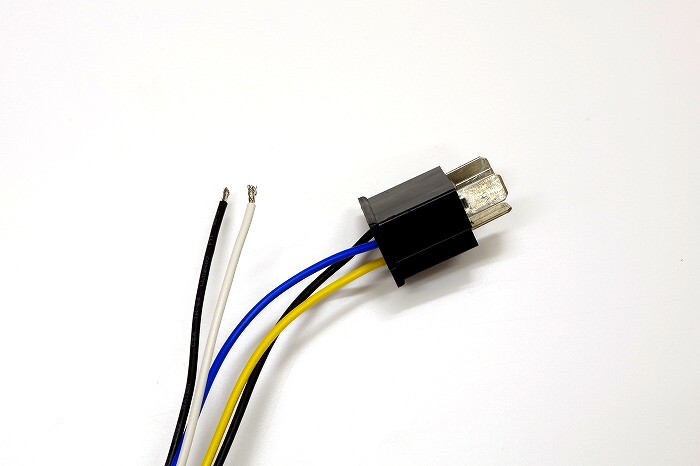

| The connector is for H4 valve, A connector to convert the H4 connector to a bullet terminal is also included. *The code for the black and white position lamp is Please note that we would like the customer to do the wiring processing themselves. |

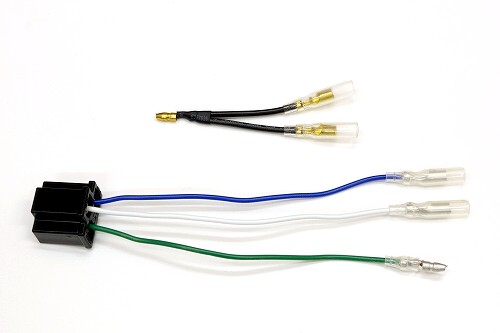

| The image above is included in the kit. Convenient when unifying the ground cords of headlights and position lamps. Y-shaped branch harness, 冇170 thin headlight H4 connector, Convenient when connecting the connector cut from the normal headlight. H4 connector conversion harness. |

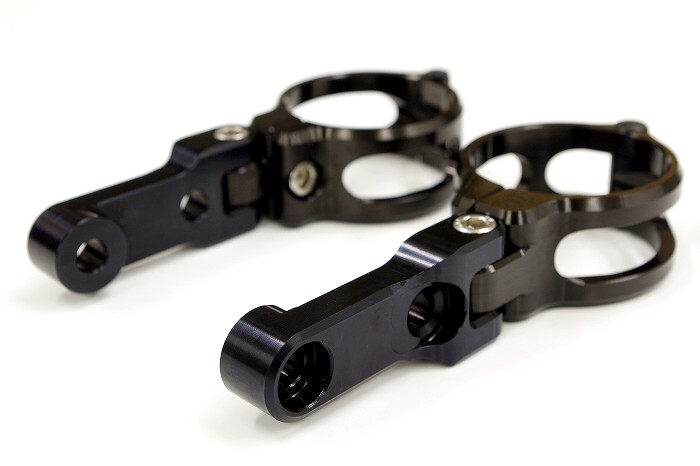

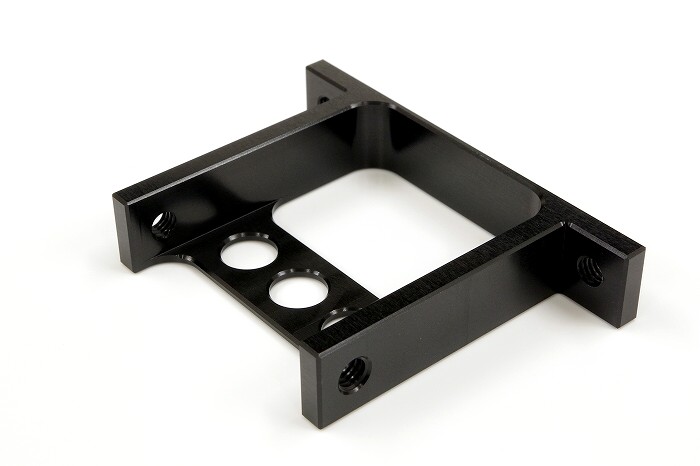

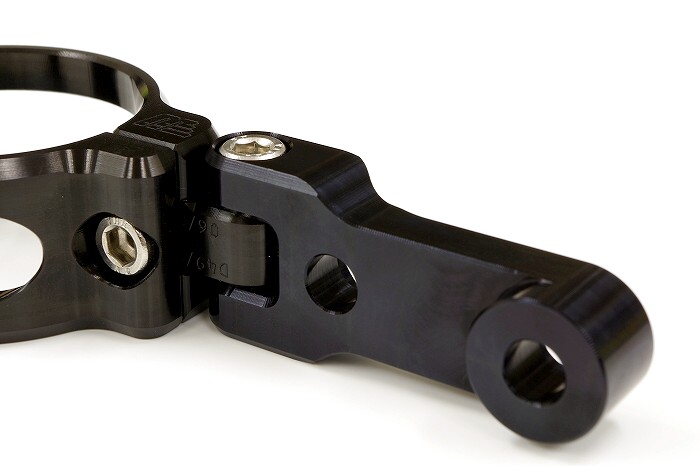

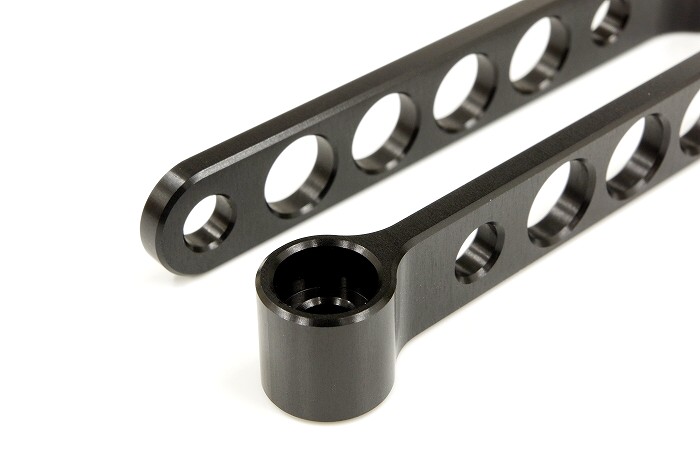

| The image above is To make it easier to attach the headlights, This is a special meter stay developed by Bugbro.com. |
| The dedicated meter stay is Since I, who designed it, was originally a machining center operator (craftsman), We do not use cheap products that look like they have been punched out using a press. By outsourcing manufacturing to a reliable factory with high processing ability and taste, All corner surfaces (C surface) were processed using a machining center. It is a product with a beautiful finish that has a "commitment" to it. of course, By paying close attention to these fine details, Coupled with the small quantity production, the stay became very expensive, In order to meet the expectations of Bugbro.com customers, We have created a product that prioritizes the "satisfaction of ownership" over cost. |

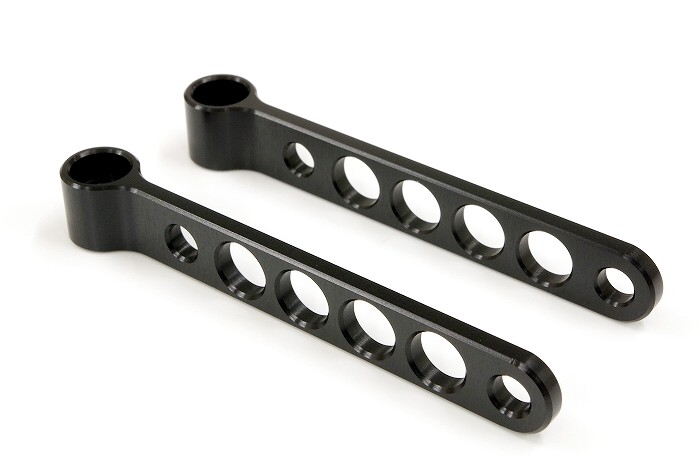

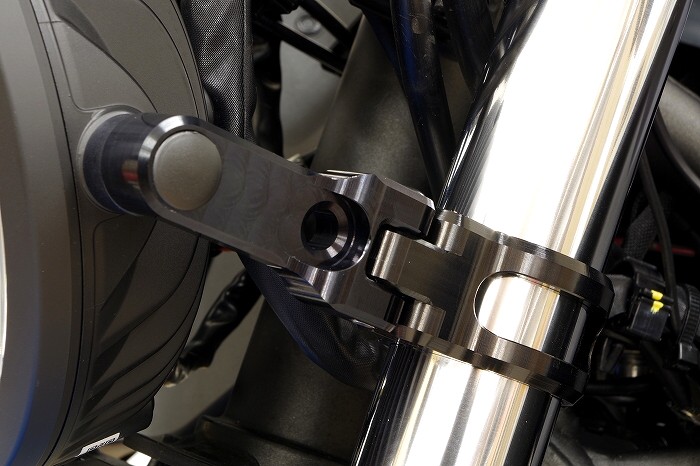

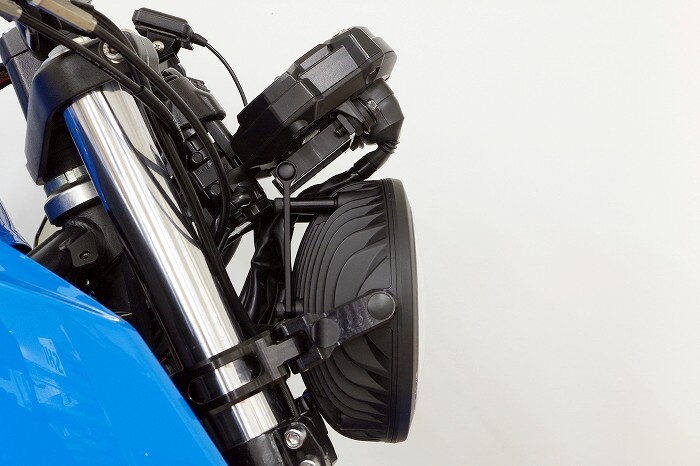

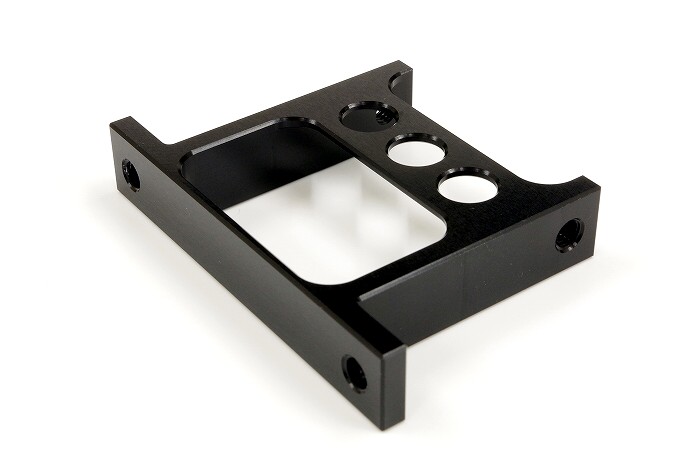

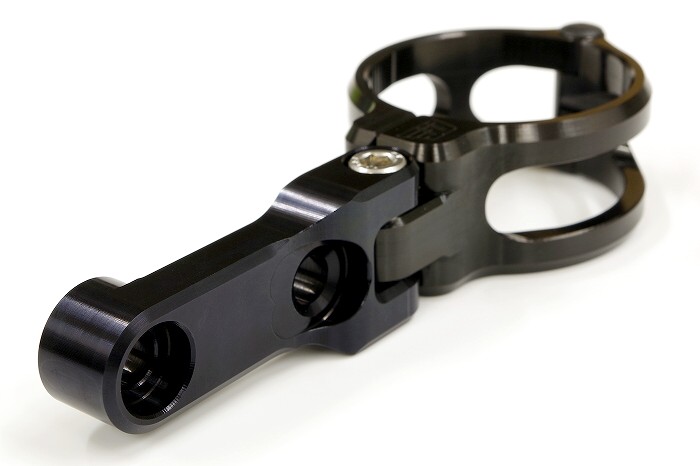

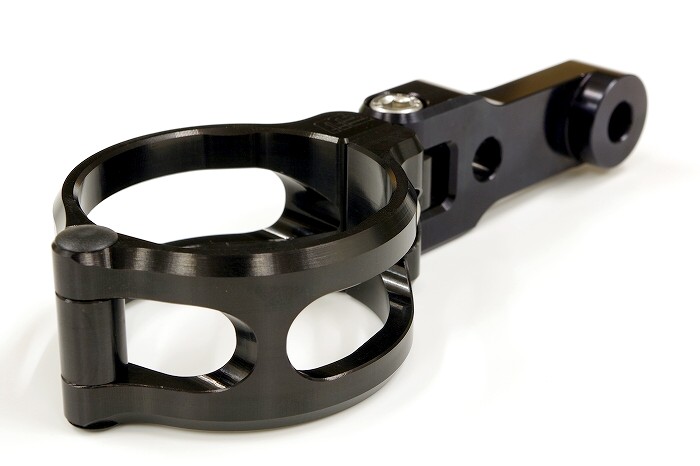

| Above is In order to increase the degree of freedom in the mounting position of the headlight, From the normal top bridge mount meter stay, Designed to change to headlight mount. This is a meter stay that is attached to the headlight. |
| This stay also Using advanced manufacturing technology, It is completely machined with a very beautiful finish. Also, The material of the meter stay and collar are all expensive duralumin (A2017). The surface has been treated to increase surface hardness and corrosion resistance. Black anodized. |

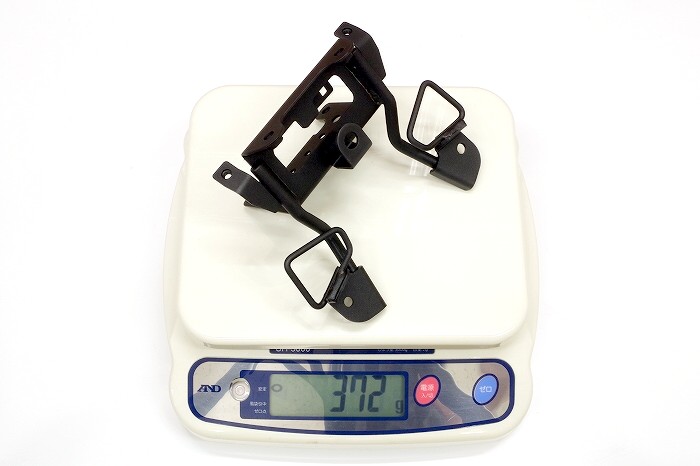

| The normal meter stay is It is heavy because it is made of iron, It is actually quite heavy, weighing approximately 372 grams. |

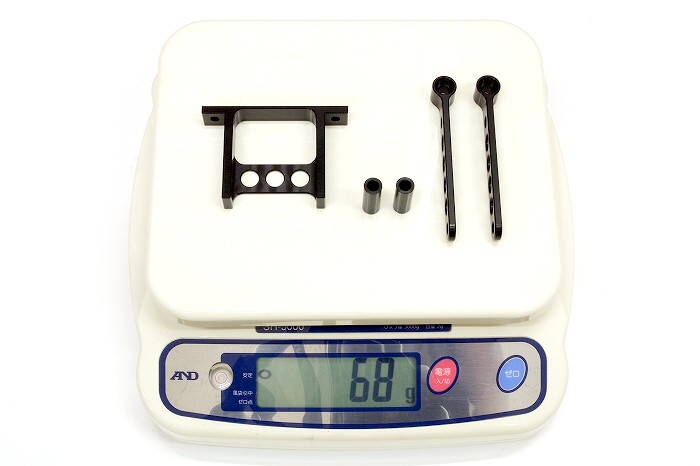

| The dedicated meter stay is The material is lightweight and highly rigid duralumin (A2017), and Coupled with significant meat removal processing, It weighs only about 68 grams. |

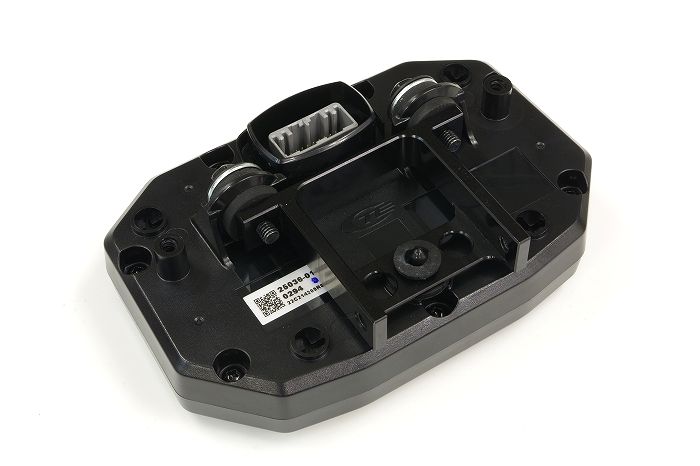

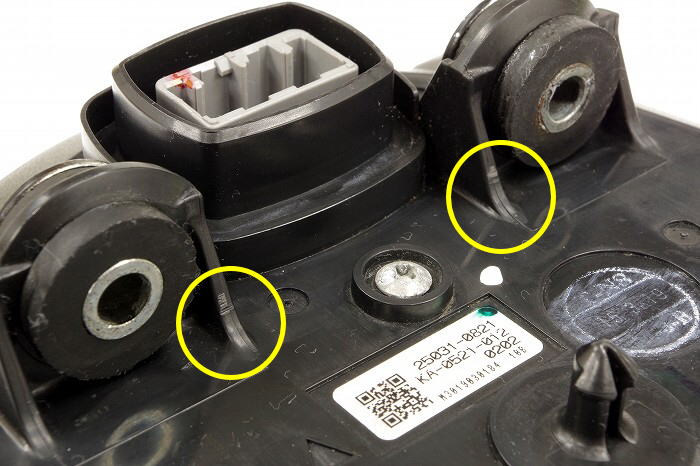

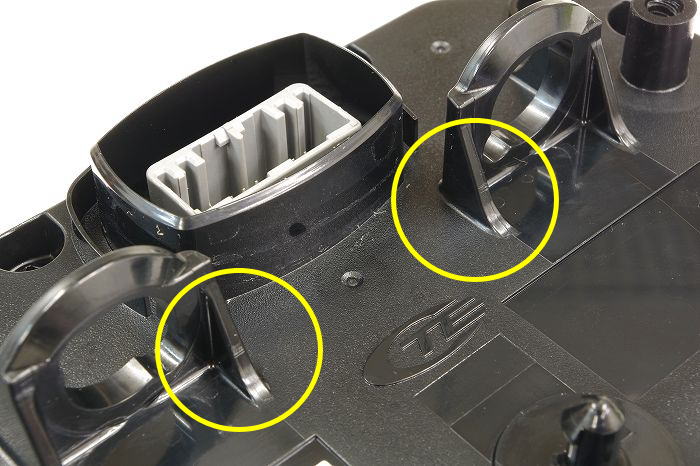

| When installing the meter stay, Because the yellow circle above the meter interferes slightly, We apologize for the inconvenience, but Please note that this part may need to be trimmed a little with a cutter. |

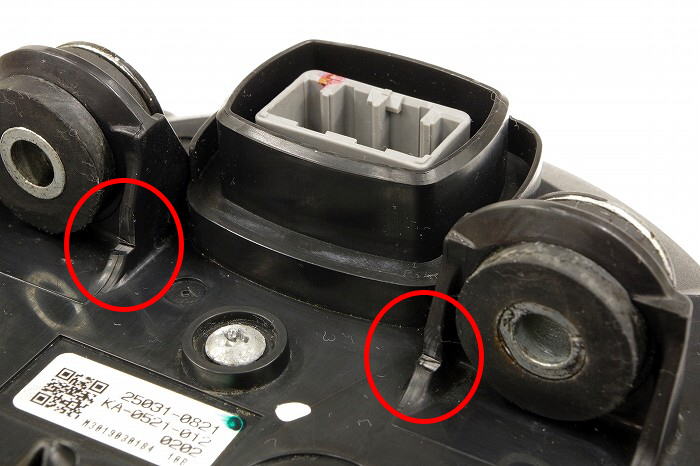

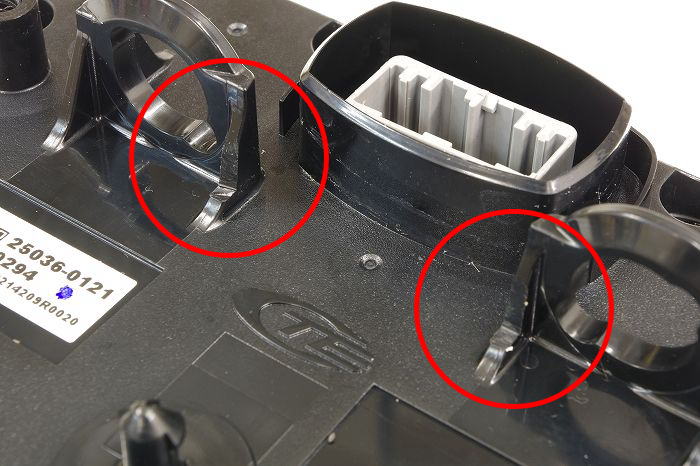

| The image above is This is the state after removing the interfering part. |

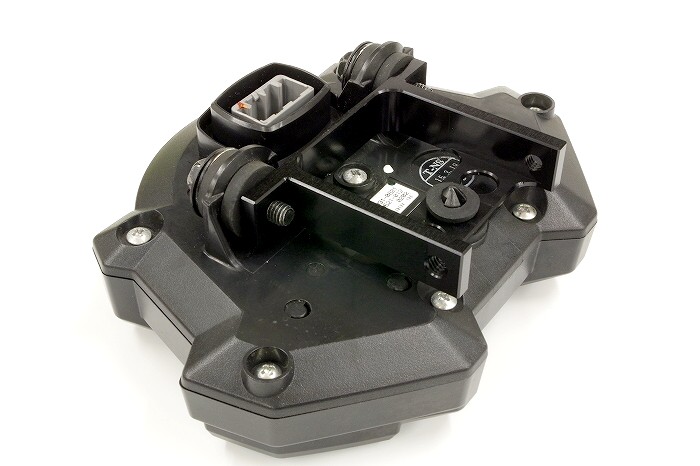

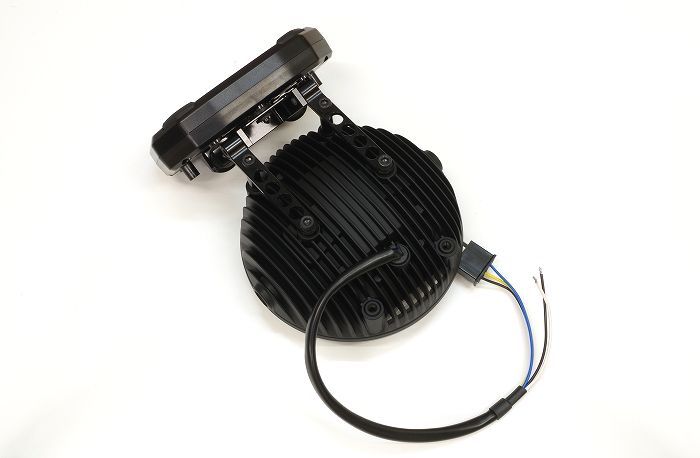

| A special stay is attached to the meter. |

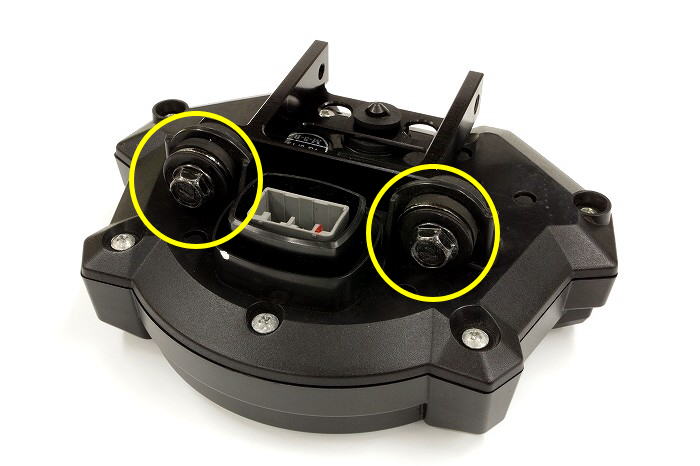

| The yellow circle part is If the normal silver color is exposed, it will look uncool. By attaching the included large black washer, It is recommended to avoid exposing the silver color. |

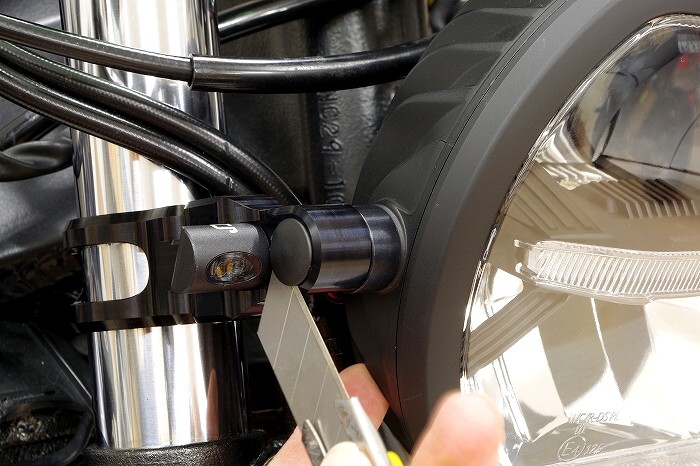

| When removing the included cap, |
| Using a utility knife blade is recommended. |

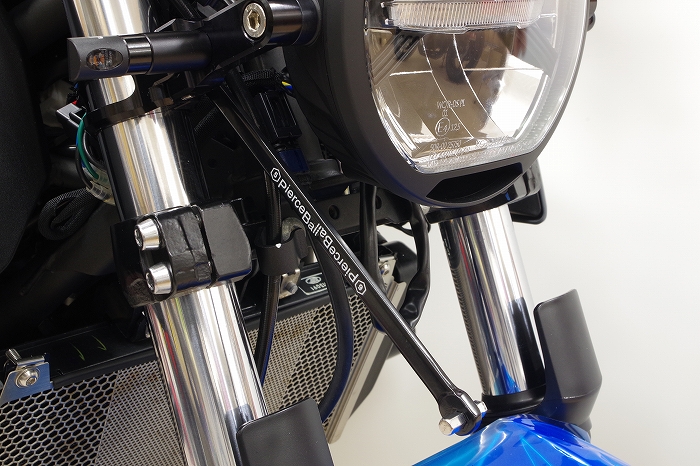

| The screws of the fork clamp facing inward, |
| When tightening with the headlights installed, |

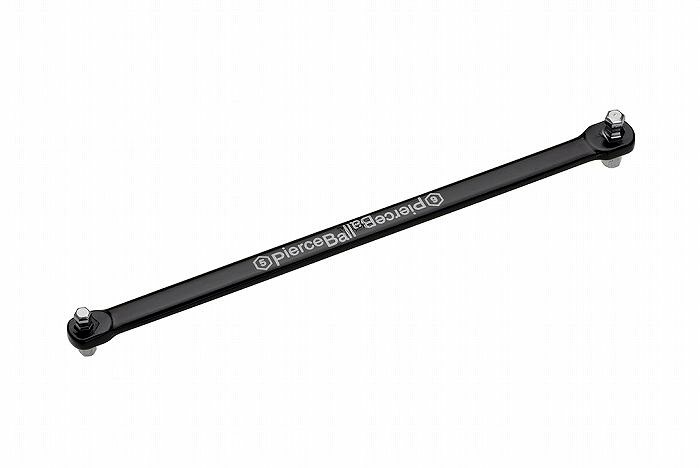

| We recommend using the "Piercing Ball Wrench (5mm x 6mm)" shown above. |

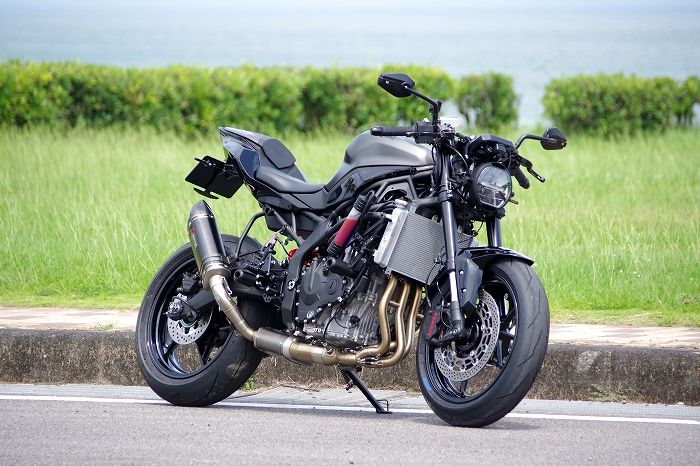

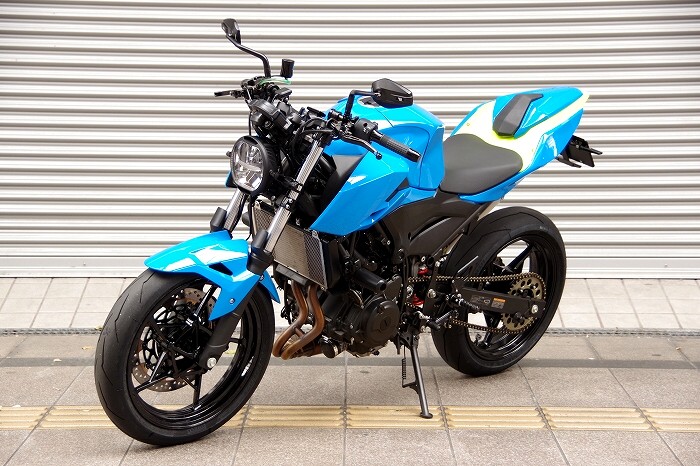

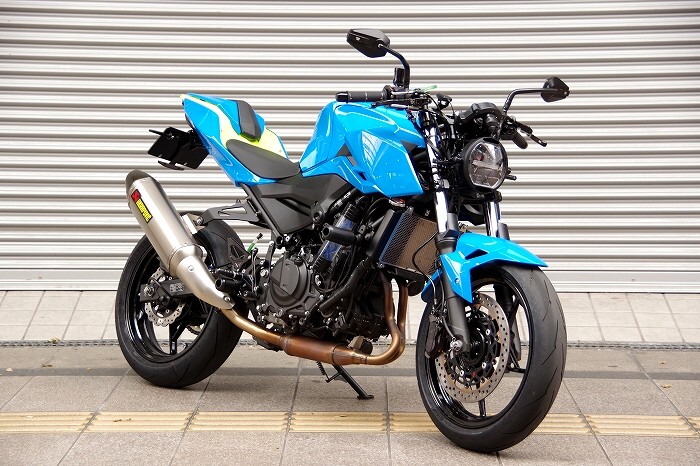

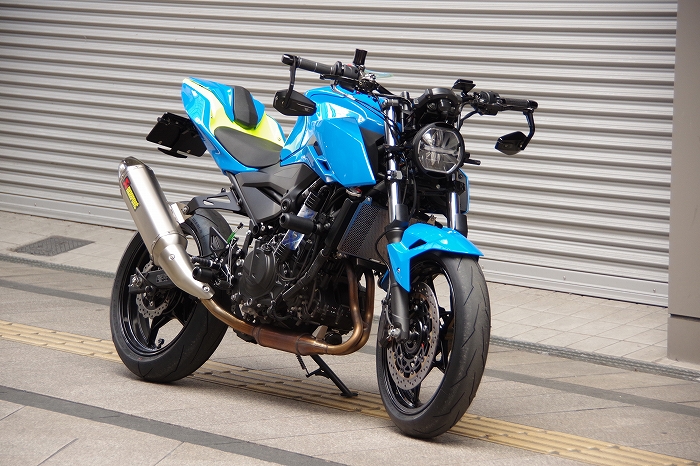

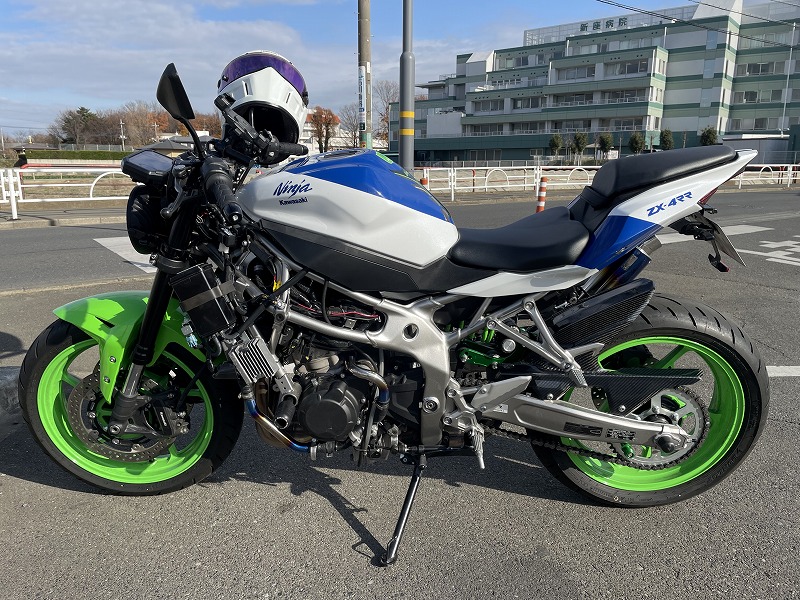

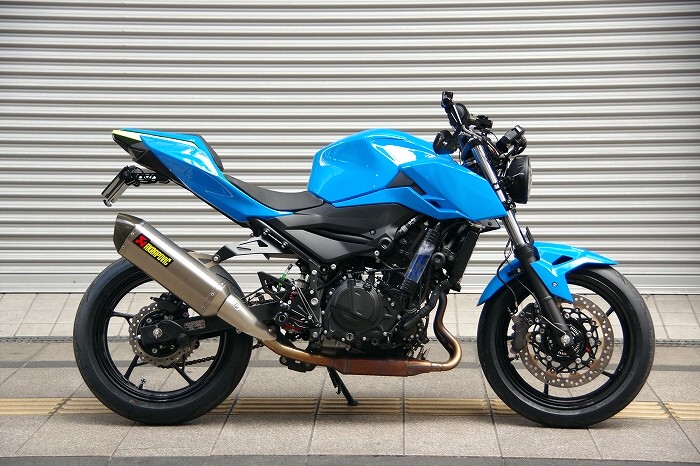

| 仾 That's our BugBro.com-built Z400 streetfighter bike, shown here with BugBro.com shop owner Yamaguchi. This is the one I personally developed and I'm the one selling it. |
|
|
|||||||||||||||||||
|
|
|||||||||||||||||||
|
|
|||||||||||||||||||
|
|
Please refer to the table above for wiring.
仧The amount of light has increased due to minor changes from 2024! 仧
ZX-4R Precautions when installing
Kawasaki parts search
|
|
Bugbro.com stickers are also included as a gift!  Use this to prove your identity as a rider who loves Street Fighter! |
